The Novation Circuit Tracks is a sleek and versatile groovebox that has quickly become a favorite among electronic music producers and live performers. With its intuitive workflow, powerful sound design capabilities, and portable design, the Circuit Tracks is perfect for creating, arranging, and performing music. If you’re new to the Circuit Tracks, this tutorial will guide you through the basics and help you unlock its full potential. Let’s dive in!

Step 1: Getting Started

  1. Power Up: Connect the Circuit Tracks to power using the included adapter or insert six AA batteries. Turn it on using the power switch.

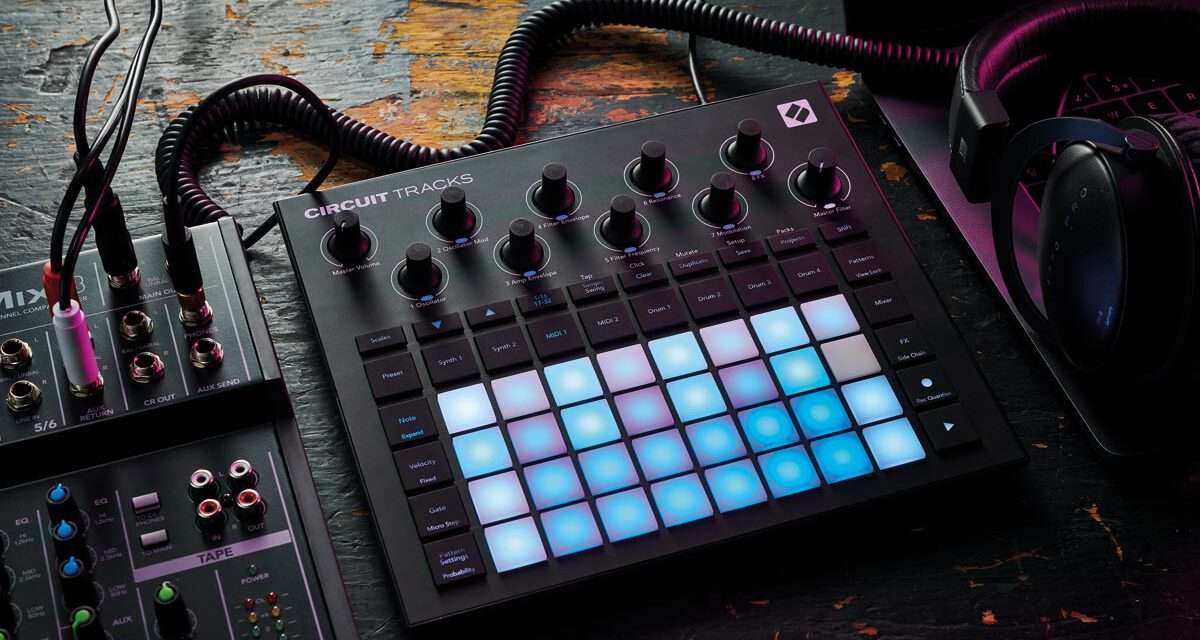

  2. Familiarize Yourself with the Interface: The Circuit Tracks features 32 RGB pads, knobs for sound shaping, and a clear LCD screen. Take a moment to explore the layout.

Step 2: Playing Sounds

  1. Select a Sound: Press the SYNTH 1 or SYNTH 2 button to select a synth track. Use the DRUM button to select a drum track.
  2. Play the Pads: Tap the pads to trigger the selected sounds. The pads are velocity-sensitive, so hitting them harder or softer will change the dynamics.

Step 3: Creating a Pattern

  1. Enter Record Mode: Press the REC button. The Circuit Tracks will start recording your input.
  2. Play Your Pattern: Tap the pads to input notes in real time. Each pad corresponds to a step in the sequence (1-32 by default).
  3. Adjust Note Length: Use the GATE knob to change the length of each note.
  4. Stop Recording: Press STOP when you’re finished. Your pattern will now be saved.

Step 4: Using Step Sequencing

  1. Enter Step Mode: Press the STEP button. The pads will switch to step sequencing mode.
  2. Select a Step: Use the pads to choose which step you want to program.
  3. Input Notes: Press the pads to add notes to your pattern. You can also adjust the pitch using the PITCH knob.
  4. Repeat for Other Steps: Program additional steps to build a full pattern.

Step 5: Sound Design Basics

  1. Select a Sound: Press a pad to select a sound you want to tweak.
  2. Edit Parameters: Use the knobs to adjust parameters like filter cutoff, resonance, envelope, and more. The LCD screen will display the parameter values, making it easy to fine-tune your sound.
  3. Add Effects: Use the FX button to add effects like reverb, delay, distortion, and more. The Circuit Tracks’ effects section is powerful and easy to use.

Step 6: Arranging Your Track

  1. Create Scenes: In the Circuit Tracks software, arrange your patterns into scenes. Each scene represents a section of your track (e.g., intro, verse, chorus).
  2. Launch Scenes: Use the Circuit Tracks’ pads to launch scenes in real time. This is particularly useful for live performances and improvisation.

Step 7: Using the Built-in Audio Interface

  1. Connect Your Microphone or Instrument: Use the Circuit Tracks’ audio inputs to connect a microphone or instrument.
  2. Record Audio: Press the REC button and play or sing into your microphone or instrument. The Circuit Tracks will record the audio directly into the software.
  3. Monitor Your Input: Use the Circuit Tracks’ headphone output to monitor your input in real time. The volume knob allows you to adjust the headphone level.

Step 8: Syncing with Other Gear

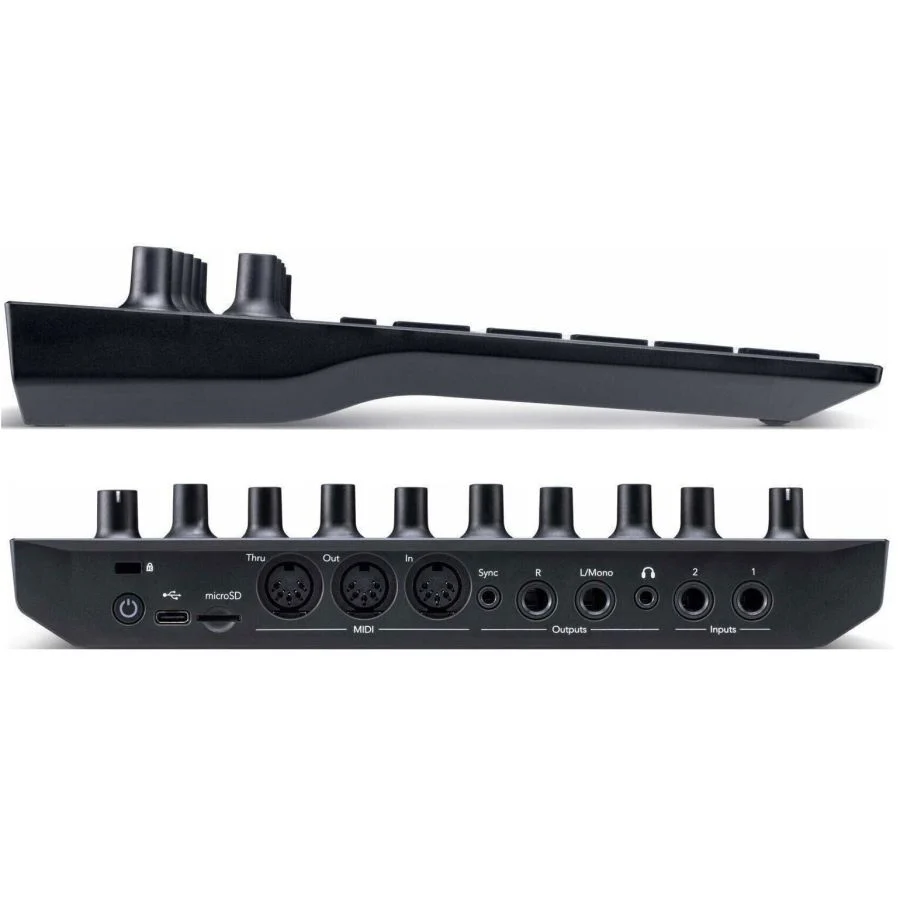

  1. Sync via MIDI: Connect the Circuit Tracks to other MIDI-compatible devices using the MIDI In/Out ports. This allows you to sync the Circuit Tracks’ sequencer with external gear.
  2. Sync via Sync In/Out: Use the sync ports to connect the Circuit Tracks to other Novation units or compatible devices.

Tips for Success

  • Experiment with Patterns: Try combining different patterns and scenes to create complex arrangements.
  • Use the Knobs: The Circuit Tracks’ knobs are highly responsive and offer precise control over your sound. Use them to tweak parameters in real time.
  • Layer Sounds: Create patterns in multiple parts, then play them together for more complex arrangements.
  • Read the Manual: The Circuit Tracks’ manual is a great resource for diving deeper into its features.

Final Thoughts

The Novation Circuit Tracks is a powerful and versatile groovebox that’s perfect for creating, arranging, and performing music. Its intuitive workflow, tactile controls, and deep sound design capabilities make it a great choice for producers and performers alike. Whether you’re sketching out ideas in the studio or performing live on stage, the Circuit Tracks is a tool that will inspire your creativity.

So power up your Circuit Tracks, start tapping those pads, and let the creativity flow. Happy sequencing! 🎶
